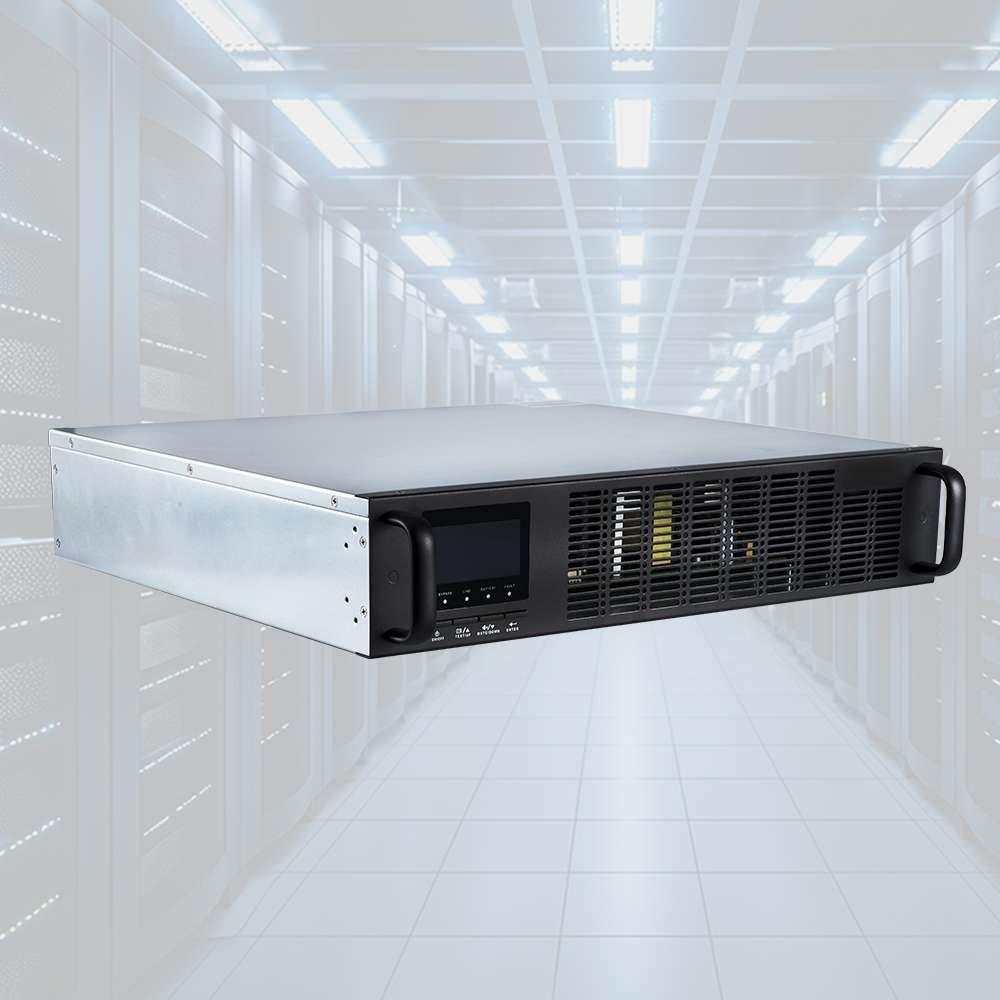

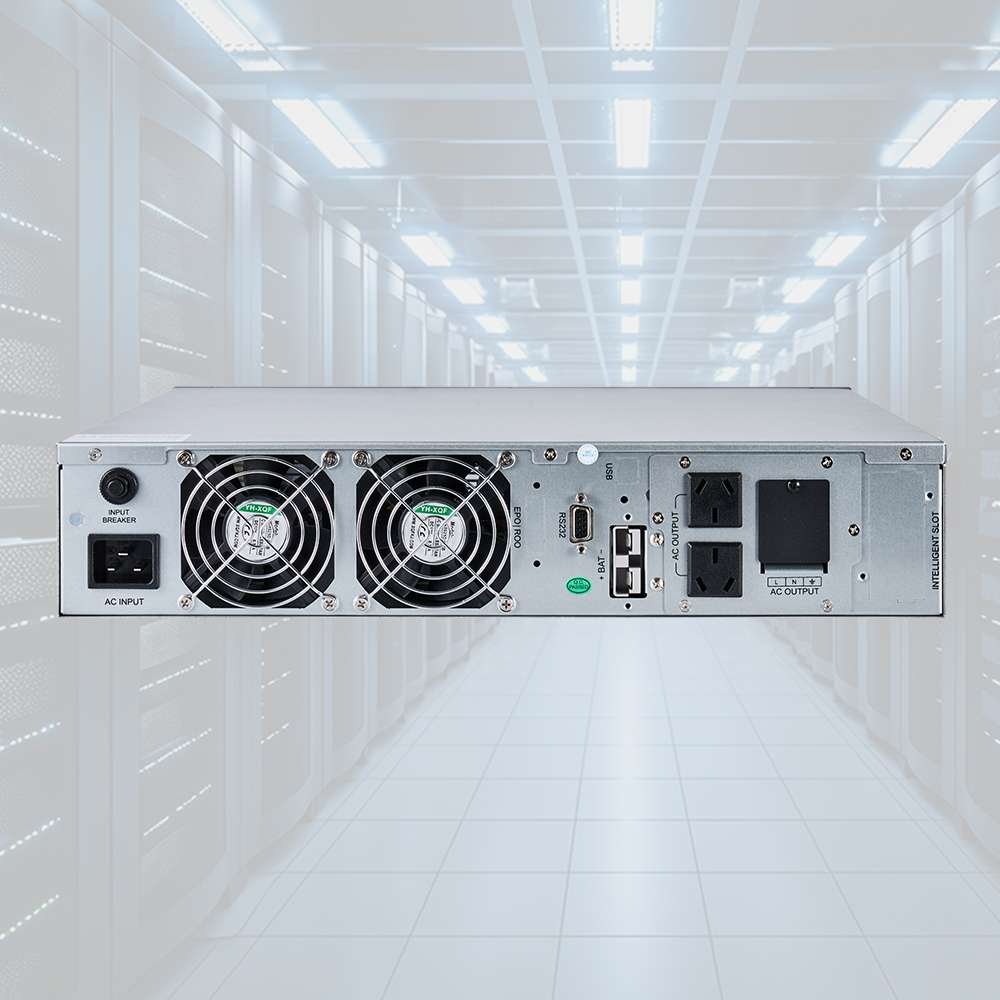

BK-R11-3KL-High Frequency Online UPS
PRODUCT PARAMETERS
The BK-R11 series is a rack mounted online dual conversion UPS designed specifically for small and medium-sized enterprises, network servers, and small servers.
- Complete Isolation of Mains Interference
- Zero Transfer Time
- High Power Quality
- Extended Battery Life
- High Reliability
- High Efficiency
- Robust and Durable Materials
- Strict Production Process
Description
FAQs
Request A Quote
Description
Product Overview
The BK-R11 series is a rack mounted online dual conversion UPS designed specifically for small and medium-sized enterprises, network servers, and small servers. It adopts an advanced dual conversion topology structure to ensure clean and stable power supply in any situation, effectively isolating power interference and protecting your critical equipment from power issues.
Applications
- Commerce/Banking: Educational, commercial, and banking office equipment.
- SME Server Rooms: Network server rooms, precision instruments, and equipment.
- Monitoring and Automation Systems: Surveillance systems, power railway signal systems, etc.
- Offices: Printers, fax machines, access control, and attendance devices.
- Branches of Large Enterprises: Companies and enterprises.
- Homes: Desktop computers, home theaters, household appliances, etc.
- Supermarkets: Cash registers, surveillance equipment, etc.
Product Features
- Complete Isolation of Mains Interference
Effectively suppresses various mains interferences such as surges and voltage fluctuations through double-conversion technology, providing pure and stable power.
- Zero Transfer Time
Instantly switches from normal mode to battery mode during mains failures, ensuring continuous equipment operation without data loss or equipment damage.
- High Power Quality
Stable output voltage and frequency with pure sine wave output, meeting the requirements of high power quality equipment and ensuring stable operation.
- Extended Battery Life
Low battery discharge probability, only discharging when mains input voltage exceeds specified limits or fails, prolonging battery service life.
- High Reliability
Independent input terminals and advanced control schemes enhance UPS fault tolerance and anti-interference capability, improving system reliability.
- High Efficiency
High-frequency rectification technology improves input power factor, reduces input harmonic current, and enhances energy utilization efficiency, reducing operational costs.
- Robust and Durable Materials
Three-proofing coating technology protects PCBA with superior insulation, moisture resistance, leakage resistance, shock resistance, dust resistance, corrosion resistance, aging resistance, mold resistance, component looseness resistance, and corona resistance, ensuring stable operation in various environments.
- Strict Production Process
Stringent quality control from SMT, insertion, assembly to production line testing, burn-in testing, quality inspection, and packaging ensures product quality.
Technical Advantages
- Pure and Stable Power Supply
Effectively isolates mains interference through double-conversion technology, providing continuous and stable power to protect equipment from power issues.
- Instant Switching, Continuous Operation
Zero transfer time during mains failures ensures continuous equipment operation, preventing data loss and equipment damage.
- Efficient and Energy-Saving
High-frequency rectification technology enhances energy utilization efficiency and reduces operational costs, helping you save energy and reduce expenses.
- Strong Adaptability, Wide Application
Suitable for various application scenarios, meeting the diverse needs of users, and providing reliable power protection in commercial, industrial, and home environments.
Specifications
| Model item | BK-R11-3KL | |
| Rated power | 3000VA/2700W | |
| AC Input | Input system | Single phase (L/N+PE) |
| Nominal voltage | HV: 208/220/230/240Vac / LV:100/110/120/127Vac | |
| Frequency | 50/60Hz | |
| Voltage range | HV:110~285VAC±5VAC / LV: 55-145Vac±3VAC | |
| Frequency range | （40~70)±0.5Hz | |
| Input power factor | >0.99 | |
| Bypass Voltage Range | HV: 180~265VAC×(1±3%) / LV: 80~140VAC×(1±3%) | |
| Battery Input | Nominal Voltage | 72V |
| Battery Capacity & Quantity | 12V/7AHx 6pcs | |
| Backup Time | Half loaded≥6minutes,Full loaded ≥2minutes(standard) | |
| Battery charger time | Charger to 90% battery capacity in 5 hours(standard) Dependent on the capacity of external batteries (long backup time) | |
| AC Out put | Output wiring system | Single phase (L/N+PE) |
| Inverter Mode Output voltage | HV:200V/208/220/230/240Vac±2% / LV:100/110/120/127Vac±2% | |
| Waveform | Sine Wave | |
| Harmonic Distortion | THD<2% (linear load) / THD<7% (nonlinear load) | |
| Output frequency | 50/60±4Hz (Sync mode) 50/60Hz±1% (Fix Freq. mode) | |
| Overload capability | 105～125%≥ 60s,126～150%≥30s The recover point is 70% | |
| Transfer time | Battery <-> Line Mode :0ms | |
| Efficiency | Line Mode | HV:89%, LV:87% |
| Battery Mode | HV&LV:87% | |
| Communications | RS232 RS485(optional), Dry contact(optional), Network Card(Option) | |
| Alarm Function | AC/DC input under abnormal, overload condition and Inverter problems | |
| Protection Function | AC input or output above or below the range of voltage, overload, over temperature and short circuit protection | |
| Noise | <50dB | |
FAQs
What is UPS?
UPS stands for Uninterruptible Power Supply and is a device that provides a continuous supply of power to protect critical loads from power failures or fluctuations.
What is the main role of UPS?
The main role of a UPS is to provide a backup power source to ensure that critical equipment can continue to operate when utility power is interrupted or unstable, avoiding data loss or equipment damage.
What are the types of UPS?
UPS is mainly divided into three types: offline, online and online interactive.
How to choose the power capacity of UPS?
When choosing the power capacity of the UPS, you need to consider the total power demand of the load, it is usually recommended to choose a slightly larger than the total load power of the UPS to ensure sufficient standby time.
How is the standby time of a UPS determined?
The standby time of a UPS depends on the battery capacity and load power. Standby time usually ranges from 10 minutes to several hours, and the specific needs can be determined according to the actual application scenario.
