​Cost-Benefit Analysis of UPS vs Voltage Stabilizers (2026 Technical Guide)​​

TIPS：The “Cost-Benefit Analysis of UPS vs Voltage Stabilizers (2025 Technical Guide)” delves into core cost and benefit differentiations. For cost, UPS has an initial cost of $20k-$100k (10-100kVA), high battery replacement and maintenance costs, with energy efficiency of 92-96% (Online)/98% (Eco Mode), and an ROI period of 3-5 years. Voltage stabilizers cost $5k-$30k initially (5-50kVA), with no battery replacement costs, lower maintenance, 95-99% efficiency, and an ROI of 2-4 years. In terms of benefits, UPS prevents losses of over $500k/hour in data centers and medical equipment. For instance, a bank cut annual downtime losses by $1.2M using dual-conversion UPS. However, voltage stabilizers only handle voltage fluctuations and lack blackout protection. This analysis serves as a comprehensive reference for industry decision-making, helping enterprises choose wisely in different electrical scenarios.

​I. Core Cost Comparison​

​II. Benefit Differentiation​

​1. Power Outage Protection​

• ​UPS:
  • ​Critical Value: Prevents $500k+/hour losses in data centers, medical devices.
  • ​Case: A bank reduced annual downtime losses by $1.2M after deploying dual-conversion UPS.
• ​Voltage Stabilizer:
  • ​Limitation: Only mitigates voltage fluctuations (e.g., ±30% input range), no blackout protection.

​2. Operational Cost Optimization​

• ​UPS:
  • ​Lithium Battery Upgrade: 30% TCO reduction over 10 years (Amazon case: Lithium UPS saved $4.2M capex vs lead-acid).
  • ​Smart Management: Cloud monitoring reduced manual inspections by 15 hours/year.
• ​Voltage Stabilizer:
  • ​Energy Efficiency: Non-contact stabilizers save 500–1.2k/year via zero fan losses.

​3. Technical Compatibility​

​III. Lifecycle Cost Model​

​UPS TCO Formula:TCO=InitialCost+Σ(AnnualMaintenance+EnergyCosts)+BatteryReplacement−ResidualValue

​Example (100kVA Online UPS)​:

• Initial Cost: $60k
• Annual Maintenance: $2.4k (battery testing)
• Energy Cost (92% efficiency): 12k×(1/0.92)=13.04k
• Battery Replacement (5 years): $8k
• ​5-Year TCO: 60k+(2.4k+13.04k)×5+8k = ​​$156.2k​

​Voltage Stabilizer TCO:TCO=InitialCost+Σ(AnnualMaintenance)−ResidualValue

​Example (50kVA Servo Stabilizer)​:

• Initial Cost: $18k
• Annual Maintenance: $1.2k
• ​5-Year TCO: 18k+(1.2k×5) = ​​$24k​

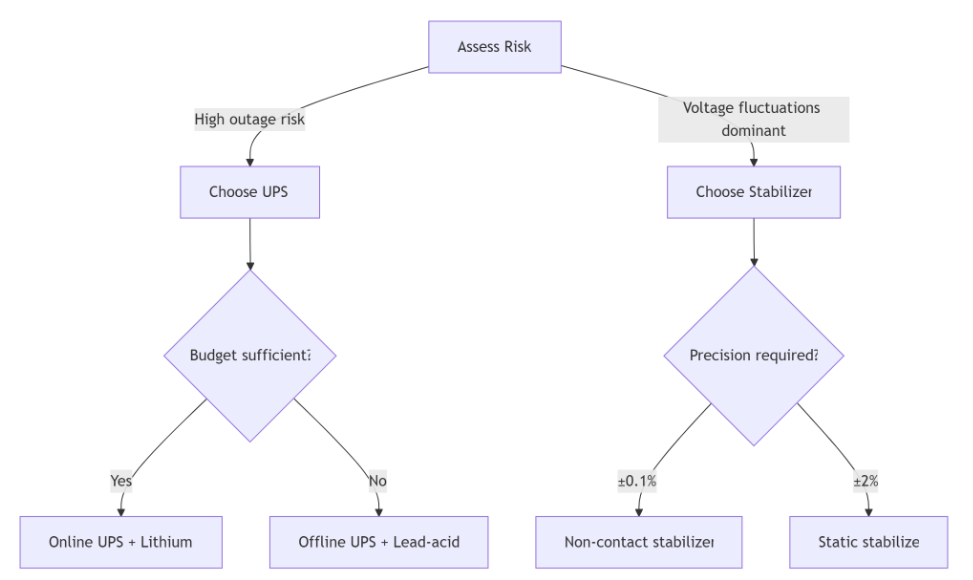

​IV. Decision Tree & Sizing Guidelines

​

​V. Industry Case Studies​

1. ​Semiconductor Plant (Stabilizer Preferred)​​
   • ​Need: Wafer fabrication equipment requires ±0.1% voltage stability.
   • ​Solution: Non-contact stabilizer (MTBF 100k hours), annual failure rate <0.05%.
2. ​Cloud Data Center (UPS Preferred)​​
   • ​Need: 99.999% uptime.
   • ​Solution: Modular UPS (N+1 redundancy) + Lithium batteries, PUE reduced to 1.15.

​VI. Emerging Technologies​

• ​AI Predictive Maintenance: UPS failure prediction accuracy up to 92%, reducing unplanned downtime.
• ​Hybrid Systems: UPS+DVR combo reduces voltage sag losses by 78% (semiconductor data).

​Conclusion

UPS delivers superior ROI in outage-prone, high-availability environments, while stabilizers excel in cost-sensitive, fluctuation-heavy scenarios. Enterprises should quantify risks via ​IEEE 1159 standards​ and adopt hybrid solutions for balanced resilience.
